Drolet Deco Nano Wood Stove
Drolet Deco Nano Wood Stove
Deco Nano Wood Stove by Drolet
Dimensions: 17 1/2" L x 12" W x 4 3/4" H
- Flexible positioning for ideal fit
- Enhances heat and combustion
- Durable and easy to clean
- Maximizes firewood burning efficiency
- Supports logs for stable burning
- Prevents logs from rolling or shifting
- Increases overall fireplace safety
- Helps maintain consistent heat output
Description
The Drolet Deco Nano Wood Stove (DB03215) can heat up to 1,200 ft² with 45,000 BTU/h of maximum power. EPA-certified at 1.8 g/h, this non-catalytic wood stove stands out with its modern design, its higher-than-average height, and its practical storage space under the appliance. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus it be able to empty them much less frequently.
Included:
pedestal with log storage, top air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper
Features
- Up to 5 hours of burn time
- - Up to 17" logs
- - 1.55 ft³ firebox
- - EPA certified
- - Proudly made in Canada
- - Limited lifetime warranty
- - Certified for mobile home and alcove installation
- - Weight : 288 lbs
Specifications
- Firebox lined with refractory bricks for better heat distribution
- High-efficiency certified appliance: Yes, EPA 2020 approved
- Recommended heating area-ft² : 250 - 1,200
- Approved for a mobile home installation
- Optimum efficiency: 80 %
- Steel thickness – top: 1/4"
- Average particulate emissions rate: 1.8 g/h
Optional Add-Ons
- Options: blower, thermodisc, firescreen, fresh air intake kit
Specifications
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area(9) | 250 - 1,200 ft² |
| Overall firebox volume | 1.7 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time(9) | 5 h |
| Maximum heat output-dry cordwood(4) | 45,000 BTU/h (13.19 kW) |
| Minimum overall heat output rate(4) (5) | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate(4) (5) | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV)(5) (6) | 74 % |
| Average overall efficiency-dry cordwood (LHV)(5) (7) | 79 % |
| Optimum efficiency(1) (2) | 80 % |
| Optimum heat transfer efficiency(8) | 79 % |
| Average particulate emission rate(3) | 1.8 g/h |
| Average CO(10) | 74 g/h |
| Size | Small |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |

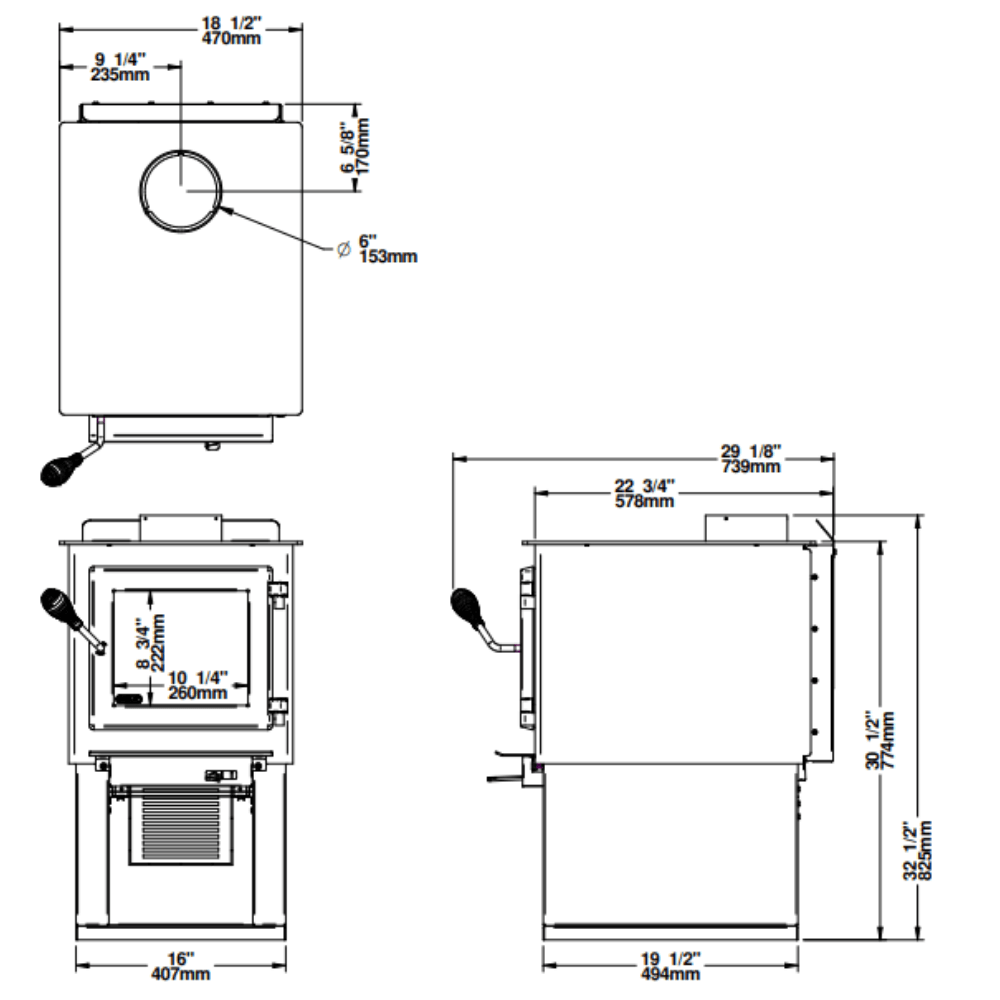

| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 6 5/8" |
| Distance-center of the flue outlet to side unit | 9 1/4" |
| Chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
General Features
| Minimum chimney height | 12' |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Depth) | 22 3/4" |
| Overall dimension (Height) | 29 1/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 12" |
| Door opening size (Height) | 7 5/8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 10 1/4" x 8 3/4" |
| Firebox size (Width) | 14 1/4" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 19 1/8" |
| Maximum log length | 17" |
| Log positioning | Loading over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Warranty | Limited lifetime |
| Shipping weight | 281 lb (128 kg) |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
Clearances
| United States | Single wall pipe | Double wall pipe |
|---|---|---|
| Clearance - Back wall | 12" | 6" |
| Clearance - Side wall | 18" | 18" |
| Clearance - Corner | 11" | 7" |
| Clearance - Base of the unit to ceiling | 84" | 84" |
Warranty
All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the Wood Stove; Drolet offers a 1 Year -LifeTime warranty. It covers any problem with the product that affects its function. Please register your warranty on our brand's warranty registration page.
Get a Federal Tax Credit on Your Purchase
Did you know that you can claim a U.S. federal tax credit of 30% on your federal tax return for this purchase?
*Any installation must be done according to the data and drawings detailed in the owner’s manual.
