Drolet Escape 1800-I Wood Insert Trio (25FT)

Escape 1800-I Wood Insert Trio (25FT) by Drolet

🚨 Pre-Order Only — Back in Stock Feb 09, 2026

Pre-Order Notice:
This item is currently out of stock with the manufacturer and is available for pre-order. Many online retailers ship directly from the manufacturer or distributor, which means that availability may be affected across multiple websites simultaneously.

If you require immediate delivery, we recommend checking availability with other online retailers before placing an order. By proceeding with a pre-order, you acknowledge and accept the extended lead time.

Alternatives

All include faceplate, and flex liner piping kits can be added right below the “Add to Cart” button on the product page.

• Englander Blue Ridge 500-I Wood Insert



Dimensions: 17 1/2" L x 12" W x 4 3/4" H

• Flexible positioning for ideal fit
• Enhances heat and combustion
• Durable and easy to clean
• Maximizes firewood burning efficiency
• Supports logs for stable burning

• Prevents logs from rolling or shifting
• Increases overall fireplace safety
• Helps maintain consistent heat output

Description

The Escape 1800 Trio offers you the perfect deal for a quick, complete and professional installation. This easy-to-ship package includes mainly a Drolet Escape 1800 wood insert, a 32" x 50" faceplate with nickel trim kit, and a 25-foot Vortex flexible stainless steel liner.

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 2.3 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

Features

• Optimum efficiency: 77 %
• Firebox lined with refractory bricks for better heat distribution
• Blower included
• High-efficiency certified appliance: Yes, EPA 2020 approved
• Recommended heating area-ft² : 500 - 2,100
• Steel thickness – top: 5/16"
• Average particulate emissions rate: 2.3 g/h
• Maximum log length: 20"

Specifications

• Burn time up to 8 hours
• 2.4 ft³ firebox
• Overall dimension (Height) 23 1/8"
• Overall dimension (Width) 28 3/8"
• Overall dimension (Depth) 26 3/8"




Included Accessories

• 6'' liner kit (25' Vortex flexible stainless steel liner
• connector
• 13'' x 13'' top plate
• chimney cap with no screen
• 32'' x 50'' faceplate with brushed nickel trim
• blower
• ceramic glass
• ash lip
• air damper

Optional Add-Ons

• Fresh Air Intake Kit
• Firescreen
• Hook Up Liner Adaptor
• Fresh Air Intake Register With Airtight Damper

Get a Federal Tax Credit on Your Purchase

Did you know that you can claim a U.S. federal tax credit of 30% on your federal tax return for this purchase?

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

Click here to Learn More

Click here to download Drolet's Tax Credit Certificate

Appliance Performance

Specification	Value
Fuel Type	Dry cordwood (16" recommended)
Heating Area	500 - 2,100 ft²
Overall Firebox Volume	2.4 ft³
EPA Loading Volume	1.95 ft³
Maximum Burn Time	8 h
Maximum Heat Output (Dry Cordwood)	75,000 BTU/h (22.0 kW)
Minimum Overall Heat Output Rate	14,200 BTU/h (4.16 kW)
Maximum Overall Heat Output Rate	44,500 BTU/h (13.04 kW)
Average Overall Efficiency (Dry Cordwood - HHV)	72 %
Average Overall Efficiency (Dry Cordwood - LHV)	77 %
Optimum Efficiency	79 %
Optimum Heat Transfer Efficiency	76 %
Average Particulate Emission Rate	2.3 g/h
Average CO Emissions	69 g/h

⁽¹⁾ This appliance is officially tested and certified by an independent agency.

⁽²⁾ Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

⁽⁾ Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

⁽³⁾ The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

⁽⁴⁾ As measured per CSA B415.1-10 stack loss method.

⁽⁵⁾ Higher Heating Value of the fuel.

⁽⁶⁾ Lower Heating Value of the fuel.

⁽⁷⁾ Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

⁽⁸⁾ Optimum overall efficiency at a specific burn rate (LHV).

⁽⁹⁾ The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

⁽¹⁰⁾ Carbon monoxide.

General Features

Combustion technology	Non-catalytic
High-efficiency certified appliance	Yes, EPA 2020 approved
Maximum log length	20"
Log positioning	Loading over width
Chimney diameter	6"
Type of chimney	Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet)	12'
Baffle type	High quality vermiculite
Approved for a mobile home installation	No
Shipping Weight	392 lb (178 kg)
Door type	Single, glass with cast iron frame
Glass type	Ceramic glass
Glass surface – dimensions (Width X Height)	16" X 9 1/4"
Glass air-wash system	Yes
Premium quality blower included (CFM)	144
Overall dimension (Height)	23 1/8"
Overall dimension (Width)	28 3/8"
Overall dimension (Depth)	26 3/8"
Door opening – dimension (Height)	9"
Door opening - dimension (Width)	17 1/2"
Firebox – dimension (Height)	11 7/8"
Firebox – dimension (Width)	21"
Firebox – dimension (Depth)	16 1/2"
Firebox lined with refractory bricks for better heat distribution	Yes
Stainless-steel secondary-air system improving gas combustion	Yes
Adjustable threaded legs	Yes
Steel thickness – body	3/16"
Steel thickness – top	5/16"
Fireplace opening – minimum (Height)	23 3/8"
Fireplace opening – minimum (Width)	28 7/8"
Fireplace opening – minimum (Depth)	15 3/4"
USA standard (emissions)	EPA / ASTM WK47329
Canadian Standard (emissions)	CSA B415.1-10
USA standard (safety)	UL 1482, UL 737
Canadian standard (safety)	ULC S628
Tested and listed as per applicable standards	By an accredited laboratory (CAN/USA)
Warranty	Limited lifetime



Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm)
	Canada	United-States
Clearance – top (measured from the platform on which the appliance is installed)**	84"	84"
Clearance – combustible side mantle to unit	9"	9"
Clearance – combustible top mantle to unit	27"	27"
Clearance – combustible side wall to unit	16"	16"
Clearance – minimum floor protection in front of the appliance	18"	16"
Clearance – from the top of the insert to the shelf	27"	27"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Warranty

All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the Wood Stove; Drolet offers a 1 Year -LifeTime warranty. It covers any problem with the product that affects its function. Please register your warranty on our brand's warranty registration page.



Installation and Operation Manual

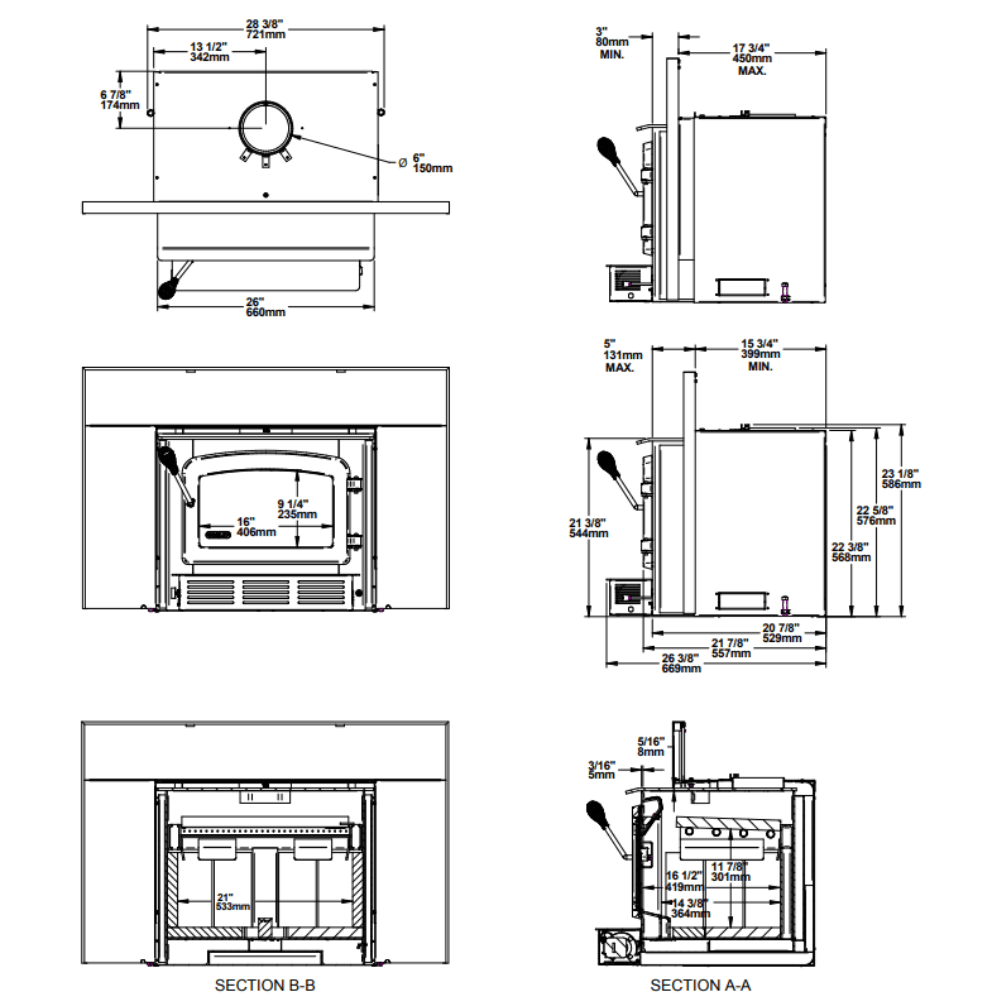

Appliance Dimensions
