Heritage Wood Stove With Blower by Drolet
Dimensions: 17 1/2" L x 12" W x 4 3/4" H
- Flexible positioning for ideal fit
- Enhances heat and combustion
- Durable and easy to clean
- Maximizes firewood burning efficiency
- Supports logs for stable burning
- Prevents logs from rolling or shifting
- Increases overall fireplace safety
- Helps maintain consistent heat output
Description
Capable of heating an area of up to 2,100 ft², the Drolet Heritage Wood Burning Stove with Blower offers a maximum heat output of 75,000 BTU/h. Robust and powerful, this non-catalytic unit goes beyond environmental standards with its low particle emission rate of 1.54 g/h. Among the largest stoves available on the market, the Heritage is equipped with a large glass surface to fully enjoy the fire.
Included
- pedestal with ash drawer, blower, air deflector, ceramic glass, ash lip, air damper, blower
Specifications
- Size: 26" W X 32" D X 32 3/4" H
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency : 77 %
- Average particulate emissions rate : 1.54 g/h
- High-efficiency certified appliance : CSA B415.1-10
- Heavy duty Steel thickness – top : 5/16"
- Approved for a mobile home installation
- Recommended heating area-ft² : 500 - 2,100
- Blower included
Features
- Up to 8 hours burn time
- 20" logs
- 2.4 ft³ firebox volume
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Weight : 350 lbs
Optional Add-ons
Appliance Performance
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area(9) | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time(9) | 8 h |
| Maximum heat output-dry cordwood(4) | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate(4) (5) | 14,800 BTU/h (4.34 kW) |
| Maximum overall heat output rate(4) (5) | 28,600 BTU/h (8.38 kW) |
| Average overall efficiency-dry cordwood (HHV)(5) (6) | 69 % |
| Average overall efficiency-dry cordwood (LHV)(5) (7) | 74 % |
| Optimum efficiency(1) (2) | 77 % |
| Optimum heat transfer efficiency(8) | 75 % |
| Average particulate emission rate(3) | 1.54 g/h |
| Average CO(10) | 89.4 g/h |
| Size | Large |
| Maximum log length | 20" |
| Shipping weight | 367 lb (166 kg) |
| Overall dimension (Width) | 26" |
| Overall dimension (Height) | 32 3/4" |
| Overall dimension (Depth) | 32" |
| Warranty | Limited lifetime |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Premium quality blower included (CFM) | 100 CFM included |
| Combustion technology | Non-catalytic |
- Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
- Optimum overall efficiency at a specific burn rate (LHV).
- This appliance is officially tested and certified by an independent agency.
- The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
- As measured per CSA B415.1-10 stack loss method.
- Higher Heating Value of the fuel.
- Lower Heating Value of the fuel.
- The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
- Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
- Carbon monoxyde.
General features
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 11 1/2" |
| Distance-center of the flue outlet to side unit | 13" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 16 3/4" |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| eI4NXqFLRJCKyAZhYcZC4w |
Warranty
All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the Wood Stove; Drolet offers a 1 Year -LifeTime warranty. It covers any problem with the product that affects its function. Please register your warranty on our brand's warranty registration page.
Installation and Operation Manual
Safety Notification and General Information

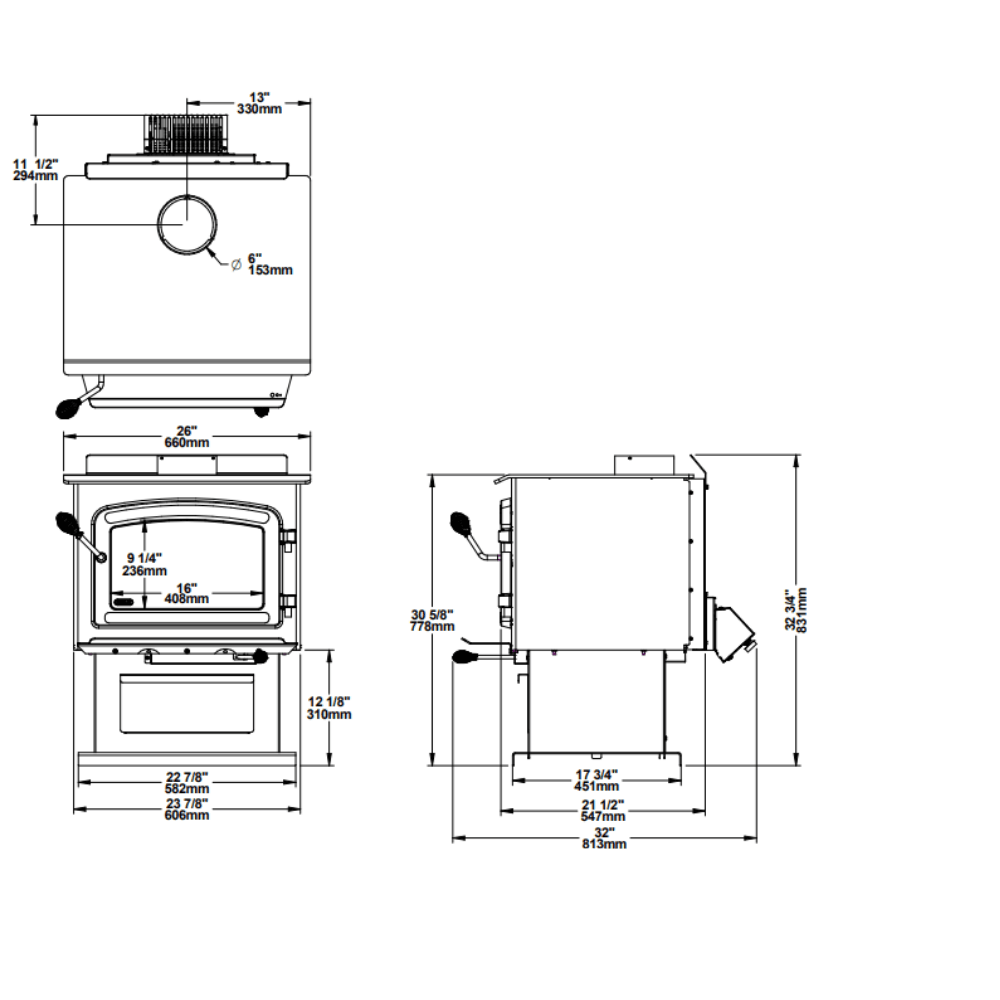

Appliance Dimensions
